Support structures for photovoltaic panels
Tables
FWD1 HDM
Layout: horizontal
Structure: two-support, driven into the ground
Module size: 2008-2205 x 996-1054 x 35
Layout of modules: 3×3, 3×4, 3×5, 4×3, 4×4, 4×5
Module type: monofacial
Wind zone: 1
Snow zone: 1,2,3
Subdience: up to 300 AMSL
Tilt angles: 25°
FWD1 HDM 3x3.
Number of modules 9
FWD1 HDM 3x4.
Number of modules 12
FWD1 HDM 3x5.
Number of modules 15
FWD1 HDM 4x3.
Number of modules 12
FWD1 HDM 4x4.
Number of modules 16
FWD1 HDM 4x5.
Number of modules 20
Tables
FWD2 HDM
Layout: vertical
Structure: two-support, driven into the ground
Module size: 2008-2205 x 996-1054 x 35
Layout of modules: 2×4, 2×5, 2×6, 2×7
Module type: monofacial
Wind zone: 1
Snow zone: 1,2,3
Subdience: up to 300 AMSL
Tilt angles: 25°
FWD2 HDM 2x4.
Number of modules 8
FWD2 HDM 2x5.
Number of modules 10
FWD2 HDM 2x6.
Number of modules 12
FWD2 HDM 2x7.
Number of modules 14
Tables
FWD1 HMM
Layout: horizontal
Structure: two-support, driven into the ground
Module size: 2008-2205 x 996-1054 x 35
Layout of modules: 3×3, 3×4, 3×5, 4×3, 4×4, 4×5
Module type: monofacial
Wind zone: 1
Snow zone: 1,2,3
Subdience: up to 300 AMSL
Tilt angles: 25°
FWD1 HMM 3x3.
Number of modules: 9
FWD1 HMM 3x4.
Number of modules 12
FWD1 HMM 3x5.
Number of modules 15
FWD1 HMM 4x3.
Number of modules 12
FWD1 HMM 4x4.
Number of modules 16
FWD1 HMM 4x5.
Number of modules 20
Tables
FWD2 HMM
Layout: vertical
Structure: two-support, driven into the ground
Module size: 1640-1776 x 990-1054 x 35
Layout of modules: 2×4, 2×5, 2×6, 2×7
Module type: monofacial
Wind zone: 1
Snow zone: 1,2,3
Subdience: up to 300 AMSL
Tilt angles: 30°

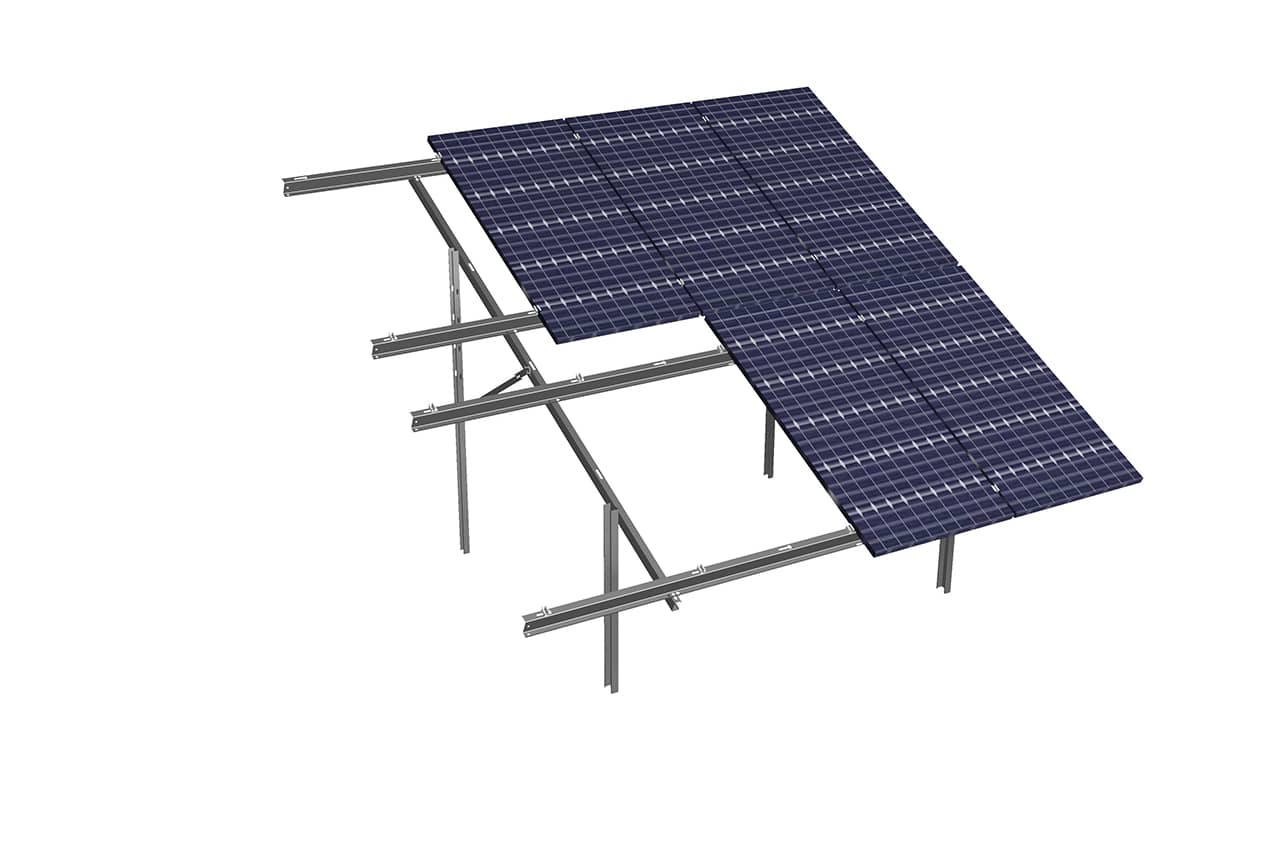

FWD2 HMM 2x4.
Number of modules 8
FWD2 HMM 2x5.
Number of modules 10
FWD2 HMM 2x6.
Number of modules 12
FWD2 HMM 2x7.
Number of modules 14
Tables
FWD2 HBM Bifacial
Layout: vertical
Structure: two-support, driven into the ground
Module size: 1720-2390 x 1095-1140 x 30/35/40mm
Layout of modules: 2×4, 2×6
Module type: bifacial, monofacial
Wind zone: 1
Snow zone: 1,2,3
Subdience: up to 300 AMSL
Tilt angles: 25°
FWD2 HBM 2x4.
Number of modules 8
FWD2 HBM 2x6.
Number of modules 12
Tables
FWD2 HBM
Layout: vertical
Structure: two-support, driven into the ground
Module size: 1720-2300 x 1095-1150 x 30/35/40
Layout of modules: 2×4, 2×5, 2×6, 2×7
Module type: monofacial
Wind zone: 1
Snow zone: 1,2,3
Subdience: up to 300 AMSL
Tilt angles: 25°
FWD2 HBM 2x4.
Number of modules 8
FWD2 HBM 2x5.
Number of modules 10
FWD2 HBM 2x6.
Number of modules 12
FWD2 HBM 2x7.
Number of modules 14
Trapezoidal steel bridge
Height (mm): 100
Dimensions (mm): 250, 340, 420
Orientation: Vertical
Module size: any
Material: S320GD steel + ZM310 Magnelis
Roof profile
Installation method: Perpendicular to the long
side of the module
Dimensions (mm): 2250, 5435
Orientation: any
Module size: any
Material: S320GD steel + ZM310 Magnelis
